可换头扭力扳手 730系列
产品详细介绍

-

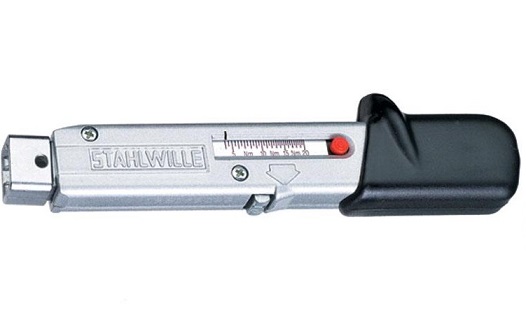

达威力Stahlwille可交换头可调式扭力扳手-730系列

Service MANOSKOP® 730 Series


·  click-type
·  mount for interchangeable insert/shell tools
·  QuickRelease safety lock (sizes 5-65)
·  rapid setting (sizes 2-65)
·  dual stop signal
·  twin scales N·m/ft·lb and N·m/in·lb (sizes 5-80)
·  the measuring element is only under load while force is being applied, no need for manual reset to zero
·  can be applied for either clockwise or anticlockwise tightening by turning the inserts over
·  any force applied to the tool after the 'click' or applied in the opposite direction to the current function - e.g. forcible loosening of a jammed screw - does not act on the trigger mechanism and cannot cause damage to it.
·  calibration using perfectControl calibrating unit No 7794 or calibration system No 7706. Adjustment without disassembly.
with certificate
·  display deviation value ± 4%

 730 - Basic wrenches with tool carrier for insert tools

   Code Size Scale Range Scale Division
Size of Insert Tool Carrier in mm (MANOSKOP) (Inside Square)
mm
b
mm
h
mm
L
mm
LF
mm
SF
mm
Weight
g

 50180002 2 4-20 N m 0,5 N m 27,5 23 178,5 174 17,5 315
 50180004 4 8-40 N m 1 N m 27,5 23 222 218 17,5 395
 50580001 a/2-1 17,5-87,5 in.lb 2,5 in.lb 27,5 23 178,5 174 17,5 315
 50580002 a/2 30-175 in.lb 5 in.lb 27,5 23 178,5 174 17,5 315
 50580004 a/4 70-350 in.lb 10 in.lb 27,5 23 222 218 17,5 395






  Code Size Scale Range Scale Range Scale Division Scale Division Size of Insert Tool Carrier in mm (MANOSKOP) (Inside Square)
mm
b
mm
h
mm
L
mm
LF
mm
SF
mm
Weight
g
 50180005 5 6-50 N m 5-36 ft.lb 2 N m 1 ft.lb 28 23 315 288 17,5 805
 50180010 10 20-100 N m 15-72,5 ft.lb 2,5 N m 2,5 ft.lb 28 23 370 343 17,5 965
 50180012 12 25-130 N m 20-95 ft.lb 2,5 N m 2,5 ft.lb 28 23 410 390 25 1100
 50180020 20 40-200 N m 30-145 ft.lb 5 N m 5 ft.lb 28 23 455 435 25 1250
 50180040 40 80-400 N m 60-300 ft.lb 10 N m 10 ft.lb 28 23 590 570 25 1880
 50180065 65* 130-650 N m 100-480 ft.lb 20 N m 20 ft.lb 30,6 25,6 875 855 25 3280
 50181565 II/65* 130-650 N m 100-480 ft.lb 20 N m 20 ft.lb 30,6 25,6 897 907 55 3280
 50580005 a/5 6-50 N m 50-440 in.lb 2 N m 10 in.lb 28 23 315 288 17,5 805
 50580010 a/10 20-100 N m 180-880 in.lb 2,5 N m 20 in.lb 28 23 370 343 17,5 965
 50580012 a/12 25-130 N m 225-1150 in.lb 2,5 N m 25 in.lb 28 23 410 390 25 1100
 50580020 a/20 40-200 N m 350-1750 in.lb 5 N m 50 in.lb 28 23 455 435 25 1250

* recommended ratchet insert tool No 735/40HD



 730/80 - Basic wrench with tool carrier for shell tools

    Code Size Scale Range Scale Range Scale Division Scale Division Size of Insert Tool Carrier in mm (MANOSKOP) (Inside Square)
mm
b
mm
h
mm
L
mm
LF
mm
SF
mm
Weight
g
 50180080 80 160-800 N.m 120-600 ft.lb 20 N.m 20 ft.lb
46 43 970 990 195 5377
Use shell adaptor No 7370/80 to make 14 x 18 mm insert tools fit.
