可换头可调扭力扳手-730N

产品详细介绍

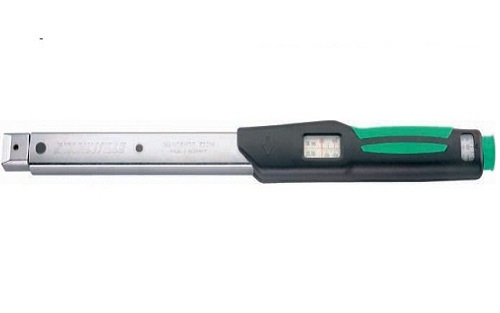

达威力 可交换头可调式扭力扳手-730系列

STAHLWILLE Service MANOSKOP 730N

· Click-type

· Mount for interchangeable insert tools

· QuickRelease safety lock

· Fast, accurate setting thanks to QuickSelect quick-action adjuster

· Dual stop signal

· Easy-to-read double scale with colour coding to differentiate between N.m/ft.lb. and ft.lb./in.lb. scales

· The measuring element is only under load while force is being applied, no need for manual reset to zero

· Can be applied for either clockwise or anticlockwise tightening by turning the inserts over

· Any force applied to the tool after the 'click' or applied in the opposite direction to the current function - e.g.

forcible loosening of a jammed screw - does not act on the trigger mechanism and cannot cause damage to it.

· Two-component handle with ergonomically designed green softer layers (resistant to oils, grease, fuels, brake fluids and Skydrol)

· Calibration using perfectControl calibrating unit No 7794 or calibration system No 7706. Adjustment without disassembly.

· With certificate

· Registered design

· Display deviation value ± 3%

730N - Basic wrenches with tool carrier for insert tools

订货号	编号	公制范围	英制范围	刻度	刻度	fine scale	接口 mm	b mm	h mm	L mm	LF mm	SF mm	重量 g
50181002	2	4-20 N m	40-180 in.lb	1 N m	10 in.lb	0.2 N m	9*12	28	23	275	226	17,5	737
50181005	5	10-50 N m	7-37 ft.lb	5 N m	1 ft.lb	0.25 N m	9*12	28	23	330	280,5	17,5	831
50181010	10	20-100 N m	15-75 ft.lb	10 N m	2.5 ft.lb	0.5 N m	9*12	28	23	386	336	17,5	988
50181012	12	25-130 N m	20-95 ft.lb	10 N m	2.5 ft.lb	0.5 N m	14*18	28	23	421	379	25	1128
50181020	20	40-200 N m	30-150 ft.lb	10 N m	5 ft.lb	1 N m	14*18	28	23	467	424,5	25	1264
50181040	40	80-400 N m	60-300 ft.lb	20 N m	10 ft.lb	2 N m	14*18	28	23	607	564,5	25	1655
50181065	65*	130-650 N m	100-480 ft.lb	50 N m	20 ft.lb	2.5 N m	14*18	30,6	25,6	890	848	25	3231
50181365	II/65*	130-650 N m	100-480 ft.lb	50 N m	20 ft.lb	2.5 N m	22*28	30,6	25,6	911	900	55	3504
50181080	80*	160-800 N m	120-600 ft.lb	100N m	25 ft.lb	5 N m	22*28	30,6	25,6	1178	1167	55	4882
50181100	100*	200-1000 N m	150-750 ft.lb	100N m	25 ft.lb	5 N m	22*28	30,6	25,6	1363	1297	55	5300
50581102	a/2	40-180 in.lb	3-15 ft.lb	10 in.lb	0,5 ft.lb	2 in.lb	9*12	28	23	275	226	17,5	737
50581005	a/5	90-450 in.lb	7-37 ft.lb	50 in.lb	1 ft.lb	2,5 in.lb	9*12	28	23	330	280,5	17,5	831
50581010	a/10	180-900 in.lb	15-75 ft.lb	100in.lb	2,5 ft.lb	5 in.lb	9*12	28	23	386	336	17,5	988
50581020	a/20	350-1800in.lb	30-150 ft.lb	100in.lb	5 ft.lb	10 in.lb	14*18	28	23	467	424,5	25	1264
50581040	a/40	60-300 ft.lb	800-3600in.lb	20 ft.lb	100in.lb	2 ft.lb	14*18	28	23	607	564,5	25	1655
Recommended ratchet insert tool No 735/40HD
