可换头定值扭力扳手-755

产品详细介绍

德国达威力机械式定值扭力扳手

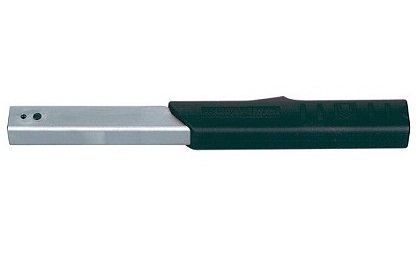

STAHLWILLE Industrial MANOSKOP® 755

For work on production lines or series production. No setting scale; have to be set with a tester such as the STAHLWILLE No 7707 W tester or the No 7794, No 7706 calibration system.

· click-type

· mount for interchangeable insert tools

· dual stop signal

· particularly light and easy to handle

· handle and shank are made of square tubular steel

· any force applied to the tool after the 'click' or applied in the opposite direction to the current function (up to the max.

of the wrench's range) does not act on the trigger mechanism and cannot cause damage to it.

· anticlockwise torquing thanks to swap-over insert tools

· on request with preset cut-out value (surcharge 10%)

· display deviation value ± 4%

755R/1 - Series MANOSKOP® torque wrench with permanently installed ratchet

Code

Size

扭矩范围

棘轮头 "

B mm

h mm

L mm

重量 g

50100001

1.5-12.5 Nm

1.0-9.0 ft·lb

1/4 "

173,5

335

755 - Basic wrenches with tool carrier for insert tool

Code	Size	公制范围	英制范围	接口 mm	b mm	h mm	L mm	LF mm	SF mm	g
50010004	4	4-40 N.m	4-30 ft.lb.	9×12	22	18	201	172	17.5	522
50010010	10	20-100 N.m	15-74 ft.lb.	9×12	28	24	318	289	17.5	635
50010020	20	40-200 N.m	30-147 ft.lb.	14×18	28	24	457	435	25	1060
50010030	30	60-300 N.m	40-220 ft.lb.	14×18	28	24	609	587	25	1210
