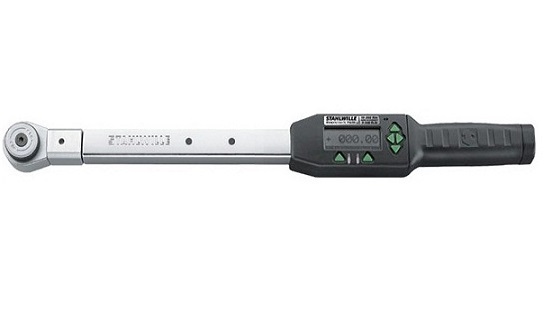

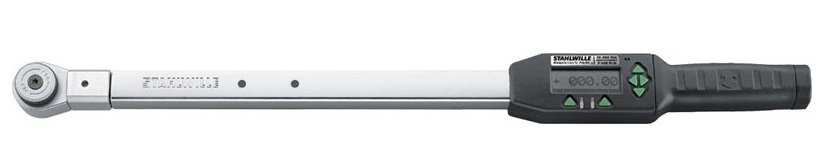

713R - Electronic angle-controlled torque wrenches Sensotork®

Indicating torque wrenches

·  simple, flexible operation thanks to operator guidance on large-format display

·  very broad measuring range (5% to 100% of rated value)

·  supplied with insert tool reversible ratchet, more insert tools

·  Quick Release safety lock

·  for clockwise and anticlockwise torquing

·  measurements independent of the point of application of force (sizes 6 and 20)

·  units of measurement: N·m, ft·lb, in·lb

·  advance warning points programmable for visual, tactile and acoustic signals

·  torque and angle are simultaneously visible

·  convenient angle measurement across a very wide angle range without a reference arm

·  nsert tool lengths can be individually set

·  maintenance friendly due to easy adjustment and automatic reminder of next calibration date

·  repeated joints can be collated to form a single menu-guided sequence

·  individual identification markings possible

·  password protection to prevent inadvertent changes and make the tool tamper-proof

·  meets requirements of DKD-R 3-7, Class 2

·  with certificate

·  in sturdy plastic case (size 40 in tough steel case)

·  supplied with three 1.5 V AA batteries. AA/LR6, 1.2 V NiMH rechargeable cells may also be used.

·  fully automated calibration (torque) using perfectControl calibrating unit No 7794-2. Adjustment without disassembly.

·  registered design

·  display deviation value for angle ± 1°

·  display deviation value ± 1%
