  达威力STAHLWILLE电子数显式扭力扳手 714R系列

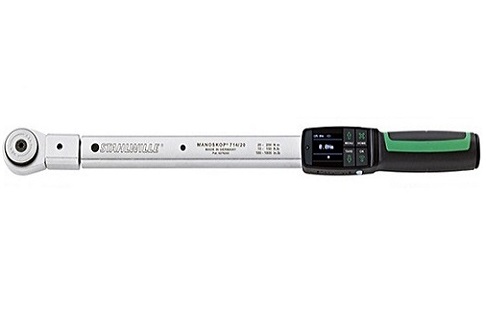

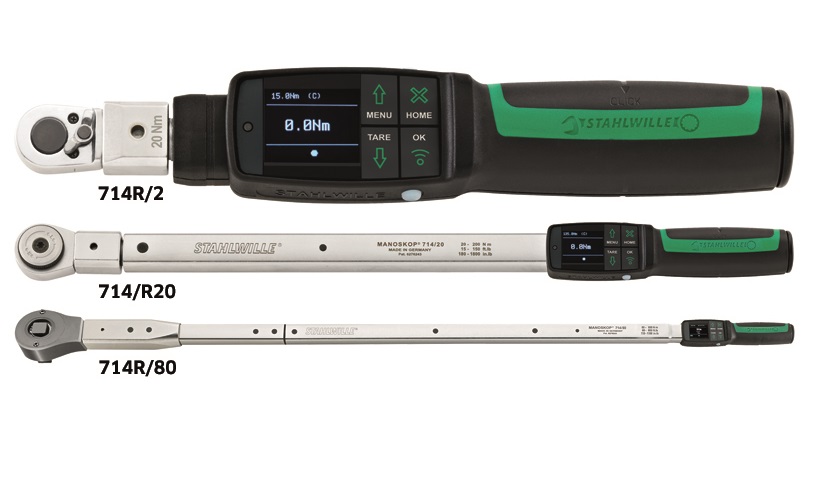

  714R Series- Basic wrenches with ratchet insert tool

• 4 measuring modes (torque, angle, torque backed up by angle, angle backed up by torque)
• high-definition colour display with additional side-mounted indicator lamps
• freely configurable menu structure
• optionally: Li-ion battery No 7195-2 and charger No 7160
• 3 function modes: cut-out, peak hold (indicating mode with peak value) and track (indicating mode with current value)
• micro USB interface
• bayonet connection for battery compartment
• QuickRelease safety lock change system for insert tools
• data storage (≤ 2500 tightening jobs)
• as many as 200 joints can be programmed in up to 25 preset sequences
• different tolerance limits can be set for each joint
• acoustic and visual assessment of the joint
• rapid, accurate setting via keypad
• the automatic keypad lock prevents inadvertent changes
• overload protection by means of acoustic and visual signals and a fail-safe system (clockwise)
• automatic notification of the next calibration date, either by the number of joints or the time interval
• fully automated calibrating and adjusting using the perfectControl® calibrating and adjusting unit No 7794-2 (torque) or 7794-3 (torque and angle)
• units of measure: N·m, ft·lb, in·lb
• tightening torque is automatically corrected if a deviating extension is entered
• immediately reusable after release
• clockwise and anticlockwise tightening – it may be necessary to refit the insert tool rotated through 180° for anticlockwise tightening in the cut-out mode
• tactile and acoustic trigger signal
• torque and angle are simultaneously visible
• all readings are independent of the point of application of force (with sizes 1, 2 and 4)
• safe handling due to ergonomically designed handle (resistant to oils, grease, fuels, brake fluid and skydrol)
• 3 certificates (torque indicating/clicking in accordance with DIN EN ISO 6789-2:2017, angle)
• in sturdy plastic box (size 40-100 in steel box)
• design patent, patent
• supplied with SENSOMASTER 4 software, USB cable, 4 AAA/LR03 micro-batteries, 1.5 V. AAA, 1.2 V, micro NiMH rechargeable batteries can be used
• display resolution, angle 0.1°
• display deviation value, angle ±1%, ±1 digit
• display resolution, torque ≤ 60 N·m: 0.01 N·m; > 60 N·m: 0.1 N·m
• display deviation value, torque ±2%, ±1 digit.

规格参数：
