电子数显扭力扳手 714
产品详细介绍

-

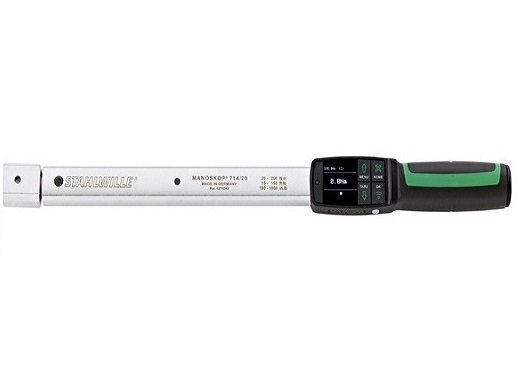

达威力STAHLWILLE 电子数显式扭力扳手-714系列

714 系列电子数显式扭力扳手 - Basic wrenches with tool carrier for insert tools


MANOSKOP® 714 - indicating and click-type
Electromechanical torque and angle-controlled wrench
4 measuring modes (torque, angle, torque backed up by angle, angle backed up by torque)
high-definition colour display with additional side-mounted indicator lamps
freely configurable menu structure
optionally: Li-ion battery No 7195-2 and charger No 7160
3 function modes: cut-out, peak (indicating mode with peak value) and track (indicating mode with current value)
Micro USB interface
bayonet connection for battery compartment
QuickRelease safety lock change system for insert tools
angle-controlled measurement without a reference arm
Data storage (≤2500 tightening jobs)
as many as 200 joints can be programmed in up to 25 preset sequences.
different tolerance limits can be set for each joint
acoustic and visual assessment of the joint
rapid, accurate setting via keypad
the automatic keypad lock prevents inadvertent changes
overload protection by means of acoustic and visual signals and a fail-safe system (clockwise)
automatic notification of the next calibration date, either by the number of joints or the time interval
fully automated calibrating and adjusting using the perfectControl calibrating and adjusting unit No 7794-2 (torque) or 7794-3 (torque and angle)
units of measure: N·m, ft·lb, in·lb.
tightening torque is automatically corrected if a deviating extension is entered
immediately reusable after release
clockwise and anticlockwise tightening - it may be necessary to refit the insert tool rotated through 180° for anticlockwise tightening in the cut-out mode
tactile and acoustic trigger signal.
torque and angle are simultaneously visible
all readings are independent of the point of application of force (with sizes 1, 2 and 4)
safe handling due to ergonomically designed handle (resistant to oils, grease, fuels, brake fluid and Skydrol)
2 certificates (torque, angle)
in sturdy plastic case (size 40-100 in steel case)
design patent, patent
supplied with Sensomaster Basic software, USB cable, 4 AAA/LR03 micro-batteries, 1.5 V. AAA, 1.2 V, micro NiMH rechargeable batteries can be used
display resolution, angle 0.1°
display deviation value, angle ±1%, ±1 digit
display resolution, torque ≤ 60 N·m: 0.01 N·m; > 60 N·m: 0.1 N·m
display deviation value, torque ±2%, ±1 digit


规格参数:

  Code No. Size 扭矩范围 扭矩范围 扭矩范围 接口
mm
b
mm
h
mm
L
mm
LF
mm
SF
mm
净重
g
重量
with box

  96500901 1   1-10 N m 0.7-7.5 ft.lb 9-90 in.lb 9*12 28 23 226 188 17.5 370 g 795 g
  96500902 2   2-20 N m 1.5-15 ft.lb 18-180 in.lb 9*12 28 23 226 188 17.5 380 g 805 g
  96500904 4   4-40 N m 3.0-30 ft.lb 36-360 in.lb 9*12
28 23 252 214 17,5 420 g 845 g
  96500906 6   6-60 N m 4,5-45 ft.lb 54-540 in.lb 9*12
28 23 393 355 17,5 810 g 1235 g
  96500910 10   10-100 N m 7.4-75 ft.lb 90-900 in.lb 9*12
28 23 466 428 17,5 1085 g 1655 g
  96500920 20   20-200 N m 15-150 ft.lb 180-1800 in.lb 14*18 28 23 547 516 25 1361 g 1896 g
  96500940 40   40-400 N m 30-300 ft.lb 360-3600 in.lb 14*18
28 23 687 656 25 1765 g 5155 g
  96500965 65   65-650 N m 48-480 ft.lb 580-5800 in.lb 14*18
30,6 25,6 890 890 55 3222 g 6017 g
  96500980 80   80-800 N m 60-600 ft.lb 720-7200 in.lb 22*28 30.6 25,6 1158 1158 55 4572 g 8662 g
  96500100 100   100-1000Nm 74-750 ft.lb 900-9000 in.lb 22*28
30.6 25,6 1343 1343 55 4990 g 9080 g
