| 可调扭力螺丝刀 760系列 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 产品详细介绍 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||

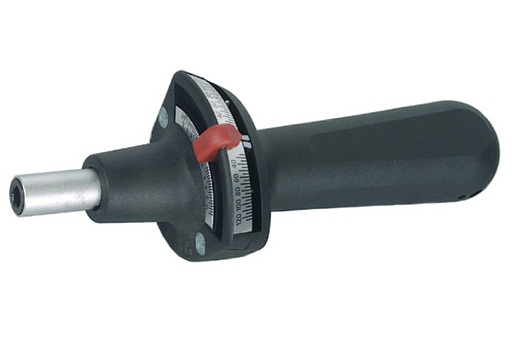

- 760 Series - Torque screwdrivers TORSIOMETER TORSIOMETER 760
· indicating type · the measuring element is a torsional leaf spring · clockwise tightening (with trailing pointer) and anticlockwise tightening · with 1/4" internal hex drive (F 6.3 DIN 3126) · comparative scale in in·lb and cursor · inserts and adaptors with external hex E 6.3 (1/4") DIN 3126/ISO 1173 are securely held and firmly controlled in the mounting shaft. · to attach 1/4" sockets, please order adaptor No 3115 · with certificate · display deviation value ± 4% |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Code No. | Size | 扭矩范围 | 扭矩范围 | 刻度 |
inside |
L mm |
重量 g |
|
|
| 51040007 | 7.5 | 15-75 cN·m | 1.5-6.5 in·lb | 2.5 cN·m | F 6.3 | 185 | 225 |
|
|
| 51040015 | 15 | 30-150 cN·m | 3-13 in·lb | 5 cN·m | F 6.3 | 185 | 225 |
|
|
| 51040030 | 30 | 60-300 cN·m | 6-26 in·lb | 10 cN·m | F 6.3 | 185 | 230 |
|
|
| 51040060 | 60 | 120-600 cN·m | 12-52 in·lb | 20 cN·m | F 6.3 | 185 | 230 |
|
|
|
Note! Torque tightening tools are measuring instruments. They must be regularly calibrated with suitable instruments and adjusted accordingly (see DIN EN ISO 6789, 5.3 Recalibrating). |
|||||||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
