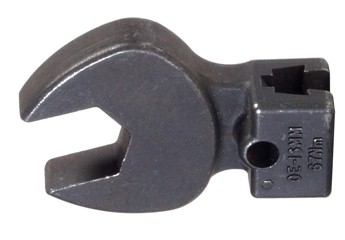

Open End Interchangeable Heads English Units of Measure
Need 3D rendering of our heads? Email our Customer Service team.
Note: All of our open end heads and ratcheting open end heads have the U-bottom design. We changed from the V-bottom to to the U-bottom to increase durability.
From an engineering standpoint a rounded corner distributes the stress vectors more evenly than designs that have intersecting planes.
If for some reason you want the V-bottom design, we can make that for you as a special.
Different pricing, minimum order quantities, and increased lead times apply.
Ordering Information for OPEN END
1 7/16" common centerline 36.5 mm common centerline
|
Part Number
|
Model
|
A (in.)
|
B (in.)
|
C (in.)
|
D (in.)
|
E (in.)
|
Torque
(in lb)
|
|
819000
|
OE -1/4
|
1.7
|
0.8
|
0.3
|
0.8
|
0.7
|
100
|
|
819001
|
OE - 5/16
|
1.7
|
0.8
|
0.3
|
0.8
|
0.7
|
150
|
|
819002
|
OE - 3/8
|
1.8
|
1.1
|
0.3
|
0.8
|
0.7
|
200
|
|
819003
|
OE - 7/16
|
1.8
|
1.1
|
0.3
|
0.8
|
0.7
|
300
|
|
819004
|
OE - 1/2
|
1.9
|
1.3
|
0.4
|
0.8
|
0.7
|
350
|
|
819005
|
OE - 9/16
|
1.9
|
1.3
|
0.4
|
0.8
|
0.7
|
400
|
|
819006
|
OE - 5/8
|
1.9
|
1.6
|
0.4
|
0.9
|
0.7
|
600
|
|
819007
|
OE - 11/16
|
1.9
|
1.6
|
0.4
|
0.9
|
0.7
|
800
|
|
819008
|
OE - 3/4
|
2.0
|
1.8
|
0.5
|
1.0
|
0.8
|
1000
|
|
819009
|
OE - 13/16
|
2.0
|
1.8
|
0.5
|
1.0
|
0.8
|
1250
|
|
819010
|
OE - 7/8
|
2.0
|
1.8
|
0.5
|
1.3
|
0.8
|
1500
|
|
819011
|
OE - 15/16
|
2.0
|
1.8
|
0.5
|
1.3
|
0.8
|
1750
|
|
819012
|
OE - 1
|
2.2
|
2.1
|
0.5
|
1.3
|
0.8
|
2000
|
|
819013
|
OE - 1 1/16
|
2.2
|
2.1
|
0.5
|
1.3
|
0.8
|
2250
|
|
819014
|
OE - 1 1/8
|
2.3
|
2.3
|
0.5
|
1.3
|
0.8
|
2500
|
|
819015
|
OE - 1 3/16
|
2.3
|
2.3
|
0.5
|
1.3
|
0.8
|
2750
|
|
819016
|
OE - 1 1/4
|
2.3
|
2.8
|
0.5
|
1.3
|
0.8
|
3000
|
Ordering Information for OPEN END
|
Part
Number
|
Model
|
A(in.)
|
B(in.)
|
C(in.)
|
D(in.)
|
E(in.)
|
Weight
(lb)
|
Torque
(in lb)
|
|
819724
|
OE -1 5/16"
|
4 5/8
|
2 15/16
|
5/8
|
1 1/2
|
1
|
1.531
|
4800
|
|
819725
|
OE - 1 3/8"
|
4 39/64
|
2 15/16
|
5/8
|
1 1/2
|
1
|
1.507
|
4800
|
|
819726
|
OE-1 7/16"
|
4 39/64
|
2 15/16
|
5/8
|
1 1/2
|
1
|
1.487
|
4800
|
|
819727
|
OE -1 1/2"
|
4 19/32
|
2 15/16
|
5/8
|
1 1/2
|
1
|
1.468
|
4800
|
|
819728
|
OE-1 9/16"
|
4 37/64
|
2 15/16
|
5/8
|
1 1/2
|
1
|
1.443
|
4800
|
|
819729
|
OE -1 5/8"
|
4 9/16
|
2 15/16
|
5/8
|
1 1/2
|
1
|
1.433
|
4800
|
|
819730
|
OE - 1 11/16"
|
4 9/16
|
2 15/16
|
5/8
|
1 1/2
|
1
|
1.399
|
4800
|
|
819731
|
OE - 1 3/4"
|
4 35/64
|
2 15/16
|
5/8
|
1 1/2
|
1
|
1.372
|
4800
|
|
819732
|
OE -1 13/16"
|
4 33/64
|
2 15/16
|
5/8
|
1 1/2
|
1
|
1.362
|
4800
|
|
819733
|
OE - 1 7/8"
|
4 15/16
|
4 11/32
|
5/8
|
1 1/2
|
1
|
2.322
|
4800
|
|
819734
|
OE - 1 15/16"
|
4 93/100
|
4 11/32
|
5/8
|
1 1/2
|
1
|
2.3
|
4800
|
|
819735
|
OE - 2"
|
4 59/64
|
4 11/32
|
5/8
|
1 1/2
|
1
|
2.259
|
4800
|
|
819736
|
OE -2 1/16"
|
4 29/32
|
4 11/32
|
5/8
|
1 1/2
|
1
|
2.23
|
4800
|
|
819737
|
OE - 2 1/8"
|
4 29/32
|
4 11/32
|
5/8
|
1 1/2
|
1
|
2.201
|
4800
|
|
819738*
|
OE - 2 3/16"
|
4 9/10
|
4 11/32
|
5/8
|
1 1/2
|
1
|
2.16
|
4800
|
|
819739
|
OE-2 1/4"
|
4 7/8
|
4 11/32
|
5/8
|
1 1/2
|
1
|
2.133
|
4800
|
|
819740*
|
OE-2 5/16"
|
4 4/5
|
4 11/32
|
5/8
|
1 1/2
|
1
|
2.1
|
4800
|
|
819741
|
OE-2 3/8"
|
4 55/64
|
4 11/32
|
5/8
|
1 1/2
|
1
|
2.065
|
4800
|
|
819742*
|
OE-2 7/16"
|
4 27/32
|
4 11/32
|
5/8
|
1 1/2
|
1
|
2.0
|
4800
|
|
819743
|
OE-2 1/2"
|
4 53/64
|
4 11/32
|
5/8
|
1 1/2
|
1
|
1.987
|
4800
|
|
819744
|
OE-2 9/16"
|
4 13/16
|
4 11/32
|
5/8
|
1 1/2
|
1
|
1.964
|
4800
|
|
819745
|
OE-2 5/8"
|
4 51/64
|
4 11/32
|
5/8
|
1 1/2
|
1
|
1.941
|
4800
|
|
819746
|
OE-2 11/16"
|
5 31/64
|
5 5/8
|
5/8
|
1 1/2
|
1
|
2.103
|
4800
|
|
819747
|
OE - 2 3/4"
|
5 31/64
|
5 5/8
|
5/8
|
1 1/2
|
1
|
2.1
|
4800
|
|
819748*
|
OE-2 13/16"
|
5 31/64
|
5 5/8
|
5/8
|
1 1/2
|
1
|
2.091
|
4800
|
|
819749*
|
OE-2 7/8"
|
5 31/64
|
6
|
5/8
|
1 1/2
|
1
|
2.214
|
4800
|
|
819750*
|
OE-2 15/16"
|
5 31/64
|
6
|
5/8
|
1 1/2
|
1
|
2.186
|
4800
|
|
819751*
|
OE - 3"
|
5 31/64
|
6
|
5/8
|
1 1/2
|
1
|
2.149
|
4800
|
|
819752*
|
OE-3 1/16"
|
5 31/64
|
6
|
5/8
|
1 1/2
|
1
|
2.12
|
4800
|
|
819752*
|
OE-3 1/4"
|
5 13/32
|
6
|
5/8
|
1 1/2
|
1
|
2.106
|
4800
|
|
